AFL FAST-ST-SM-6 FASTConnect Field-Installable Single-mode ST Fiber Optic Connector


AFL FAST-ST-SM-6 FASTConnect Field-Installable Single-mode ST Fiber Optic Connector

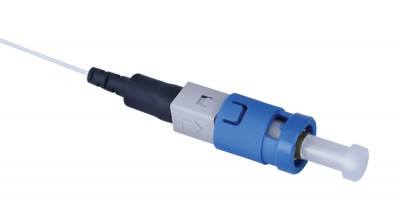

AFL's FAST-ST-SM-6 FASTConnect Single-mode compatible ST fiber optic connector is a  factory pre-polished, field-installable fiber connector that completely eliminates the need for hand polishing in the field. Its proven mechanical splice technology ensures precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate, low loss termination to single-mode optical fiber.

Connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination.

Incorporated into this connector is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

  • Single-mode UPC compatible
  • Color: Blue
  • No Epoxy, No Polish
  • Low Insertion Loss
  • Fiber Can Be Reinserted up to Three Times
  • Cable Size: 900 μm
  • Order 2mm or 3mm boots seperately

6 per pack


FAST-ST-SM Spec Sheet

FASTConnect Termination Video

Availability: Usually Ships Same Day

Part NumberQty Per PackPrice
FAST-ST-SM-66Each: $74.10
5+: $68.88
