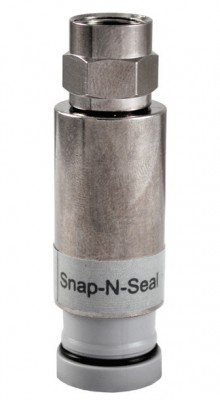

Belden 716SNS1P11PL Snap-N-Seal ProSNS Compression F Connector for Plenum RG11
The 716SNS1P1PL is a universal “F” type connector that fits most Plenum jacketed RG11 standard, tri-shield, and quad-shield coaxial cable.
- The 716SNS1P11PL ProSNS connectors feature True 360 degree compression technology which provides high quality 75Ω performance, -85 dB effective shielding and superior return loss.
- Utilizes an air dielectric for better performance and excellent return loss
- The patented floating-pin insertion guide assists with the insertion of the cable into the connector and reduces the insertion force required to provide consistency and easy termination of the connector
- An O-ring placed at the base of the connector with a NiTin finish and UV resistant plastic provides a reliable, environmentally sealed product on the cable
- Low insertion force is required to compress the connector onto the cable
- 7/16" nut
- Use the industry standard 1/4”-1/4” cable preparation
- Crimp with SNSUNI or CPLCCT-LS59/11 tool
Center .0634" - .0647"
Dielectric .274" - .294"
Outer Jacket .339" - .355"
Availability: Usually Ships Same Day
