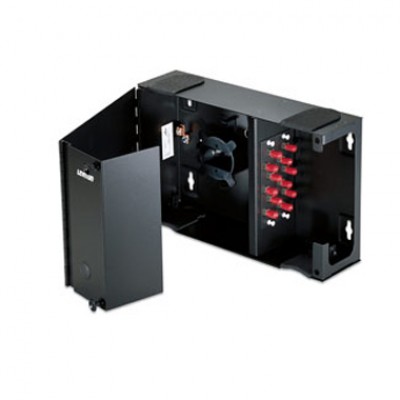

Leviton 5W120-N Small Wall-Mount SDX Fiber Enclosure, Empty, with Split Metal Door,with Lock


Leviton 5W120-N Small Wall-Mount SDX Fiber Enclosure, Empty, with Split Metal Door,with Lock

Leviton 5W120-N SDX Wall-Mount Fiber Enclosure with Split Door and Lock accepts up to 2 SDX Fiber adapter plates or 2 SDX MTP cassettes (sold separately). This small fiber enclosure is ideal for applications requiring patching, cross-connect, and/or splicing of single-mode or multimode fibers while utilizing a minimum of space

  • Enclosure is sold empty; order loaded SDX adapter plates separately
  • Designation stickers allow identification of port assignments
  • Capable of storing up to three meters of 900 micron tight-buffered fiber per adapter
  • Split Metal Door with Lock and key
  • Includes hardware kit with hook and loop ties, screws, a caution label, and cable ties
  • Enclosures accept all SDX adapter plates.
  • UL Listed; meets or exceeds all ANSI/TIA-568-C requirements
  • Dimensions: 13" x 8" x 3.5"
  • Enclosure: 16-gauge steel, powder-coated black, white logo
  • Fiber Management Rings: Self-extinguishing plastic rated UL 94V-0
  • Grommet material: Ensolite™



5W120-N Spec Sheet

Availability: Usually Ships Same Day

Part NumberPrice
5W120-NEach: $92.55
