Shop - Leviton 5WMNT-01C Mini Opt-X SDX Wall-Mount Enclosure

Leviton 5WMNT-01C Mini Opt-X SDX Wall-Mount Enclosure


Leviton 5WMNT-01C Mini Opt-X SDX Wall-Mount Enclosure

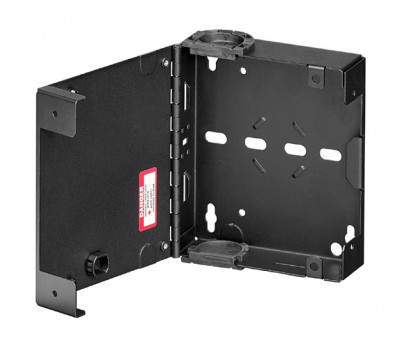

Leviton's 5WMNT-01C Mini Opt-X SDX Wall-Mount Enclosure allows for inter-connect or cross-connect between cable and active equipment while using minimum wall space. The enclosure features and design allow for easy field termination of connectors, splicing, or pre-terminated plug-and-play solutions. The 5WMNT-01C enclosure is designed to accept Leviton Opt-X SDX Precision-Molded Adapter Plates, SDX Splice Modules, and SDX MTP Cassettes in LC, SC, ST, and MTP connectivity. The fiber enclosure is primarily used in controlled indoor applications, such as in entrance facilities, equipment rooms, and telecommunications rooms, work areas, and 0RU applications.

  • Enclosure accommodates up to 24 fibers (using LC), 12 fibers (using SC), and 6 ports (for copper)
  • Accepts SDX Precision-Molded Adapter Plates and SDX MTP Cassette for multiple solution capabilities
  • Removable cable entry/exit grommets allow for pre-terminated fiber trunk install, cable protection, and minimizes dust build up
  • Constructed of 16-gauge steel for enhanced durability
  • Enclosure is sold empty (unloaded) for install in indoor controlled environments
  • Capable of storing up to three meters of 900 μm tight-buffered fiber per adapter
  • 40 mm maximum length splice sleeves (sold separately) recommended for individual fiber splicing
  • Enclosure is powder-coated black
  • Enclosure includes an accessory kit consisting of cable VELCRO® Brand ties, mounting screws, port ID label, and patch cord cable managers
  • Overall dimensions: 6.53" x 6" x 1.75"
Availability: Usually Ships Same Day

Part NumberPrice
5WMNT-01CEach: $57.00
