Shop - Leviton Cat5e GigaMax QuickPort Snap-In Connectors

Leviton Cat5e GigaMax QuickPort Snap-In Connectors


Leviton Cat5e GigaMax QuickPort Snap-In Connectors

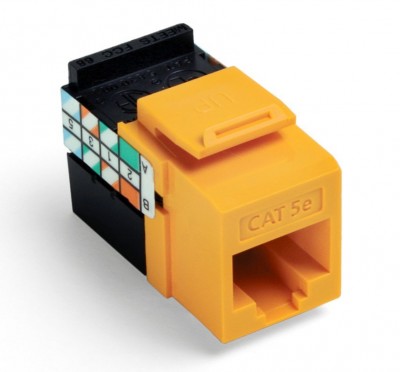

GigaMax® 5e+ Cat5e QuickPort® Component-Rated Rj45 Jacks feature Leviton’s patented Retention Force Technology (RFT), the connectors also feature unique pair separation towers allowing for quicker and easier terminations. The 8-position, 8-conductor  (RJ45) GigaMax 5e+ component-rated QuickPort Connectors feature color-coded wiring labels with both T568A and T568B wiring patterns for dual flexibility in a single connector, plus fast, accurate 110 termination of station wiring. Connectors meet standards for UL, NEC Article 800, and FCC Part 68, and are fully compliant with published TIA-568-B.2 requirements.
  • Cat5e QuickPort jacks are Component rated (Channel rated if used with approved cables)
  • 1000BASE-T performance for high-bandwidth applications
  • Dual wiring code label allows connector to be wired to either T568A or T568B.
  • Narrow connector allows high port density in a small area.
  • Spring wire contacts are high-quality phosphor bronze, plated with 50 micro-inches of gold, over 100 microinches of nickel
  • Connector provides a ledge directly adjacent to the 110-style termination against which the wires can be directly terminated and cut in one action by the installer
  • High impact fire-retardant plastic
  • TIA/EIA cULus Listed

Made in the USA



Availability: Usually Ships Same Day

Part NumberColorQty per PackPrice
5G108-RB5Brown1Each: $3.20
5G108-RC5Crimson Red1Each: $3.20
5G108-RE5Black1Each: $3.20
5G108-BE5Black25Each: $77.25
5G108-RG5Grey1Each: $3.20
5G108-RI5Ivory1Each: $3.20
5G108-BI5Ivory25Each: $77.25
5G108-RL5Blue1Each: $3.20
5G108-BL5Blue25Each: $77.25
5G108-RO5Orange1Each: $3.20
5G108-BO5Orange25Each: $77.25
5G108-RP5Purple1Each: $3.20
5G108-RT5Light Almond1Each: $3.20
5G108-BT5Light Almond25Each: $77.25
5G108-RV5Green1Each: $3.20
5G108-RW5White1Each: $3.20
5G108-BW5White25Each: $77.25
5G108-RY5Yellow1Each: $3.20
