Shop - Middle Atlantic SFR-12-24 12 Space Swing Frame Rack

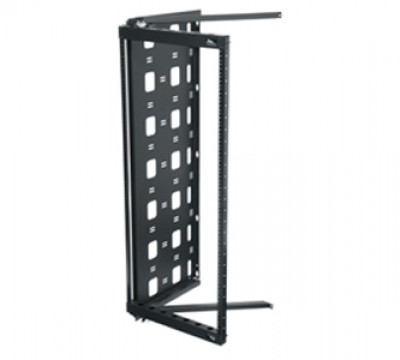

Middle Atlantic SFR-12-24 12 Space Swing Frame Rack


Middle Atlantic SFR-12-24 12 Space Swing Frame Rack

Middle Atlantic SFR-12-24 12 Space Swing Frame Rack has an innovative open-back wall mount design ideal for mounting over existing equipment and physical obstacles (conduit, telephone equipment, etc.). Use for mounting patch panels, hubs and switches, while simplifying access for termination and cable routing. Rugged steel construction with 100lb weight capacity.

  • Rugged steel construction provides the greatest strength in its class
  • Unique design uses pivot points and can be inverted left or right swing
  • Open-back design maximizes useable wall space
  • 90º opening with positive stop for punching down
  • Standard 10-32 threaded rackrail with marked spaces
  • Abundant tie points and cable pass-throughs
  • Includes 50 rack screws and hook and loop cable fasteners

Usable Depth: 18"
Usable Height: 21"
Depth: 24.2"
Height: 27.22"
Width: 19.6"
Rack Units: 12
Capacity Weight (US): 100lbs

Availability: Usually Ships Same Day

Part NumberPrice
SFR-12-24Each: $218.25
