AFL KR0609601001 60 Fiber Singlemode Tight Buffer Indoor/Outdoor Multi-Unit OFNR Premise Cable

Product Description

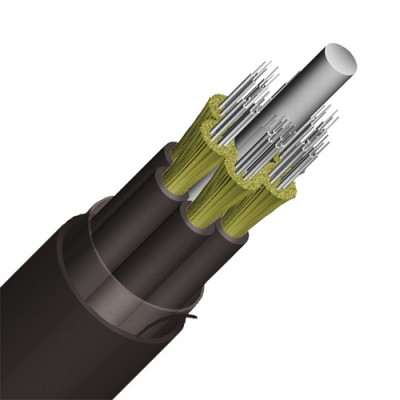

AFL's KR060961001 60 fiber Singlemode Indoor/Outdoor Multi-Unit Riser Tight Buffered Fiber Optic cable features 5 waterblocked 12 fiber helically stranded sub-units. The sub-units contain a water-swellable aramid and 12 tight buffered fibers.

For indoor applications the cable is OFNR listed.  For outdoor applications the cable is manufactured with an outer jacket that incorporates a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.

  • With a Riser rating, this cable can be used in riser, general inside plant and outside plant applications
  • 12 fiber sub-units are water blocked and meet water penetration requirements of GR-20-CORE (this helps ensure that any damage to cable is restricted to a repairable length of several meters and minimizes the likelihood of having to replace the entire cable)
  • Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use
  • Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE

Fiber: 8.3um Singlemode Tight Buffer
Fiber Count: 60 - 5 x 12 fiber sub-iunits
Wavelength: 1300nm/1550nm
Max Attenuation: .5/.5 dB/Km
10Gb Min Link Length: 10,000 meters
Environment: Indoor/Outdoor
Cable Type: Premise Cable/Distribution
Flame Rating: Riser OFNR
Jacket Color: Black
Nominal Diameter: .76"
Minimum Bend Radius: Installation - 11.3", Long Term 7.6"
Operating Temperature:0C to +70C

AFL KR060961001 60 fiber Singlemode Indoor/Outdoor Multi-Unit Riser Tight Buffered Fiber Spec Sheet



Availability: Usually Ships Same Day

Part # Description Price Qty
KR0609601001 Price per foot each: $2.10
