Product Description

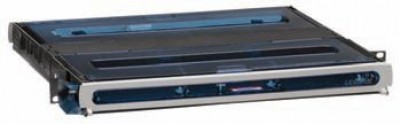

Leviton's 5R1UH-S03 Opt-X 2000i SDX Fiber Optic Enclosures go beyond the black box, this 1U fiber enclosure offers stunning good looks and unprecedented functionality. Enhanced accessibility features make installation and maintenance a breeze, while advanced cable management tools reduce fiber stress and allow for multiple configuration options.
The 5R1UH-S03 Fiber Enclosure with Sliding Tray allows for inter-connect or cross-connect between backbone cable and active equipment while utilizing minimum rack space in a frame or cabinet setting. The enclosure feature set and design allows for installer’s ease in field termination of connectors and splicing. The 5R1UH-S03 is primarily designed for use in high-density fiber applications such as data centers, equipment rooms, central offices, etc.
- Accepts up to 3 SDX fiber adapter plates and splice trays or 3 SDX MTP cassettes
- Sliding tray removes completely from enclosure to facilitate field terminations and splicing
- Sliding tray glides forward and backward, providing accessibility to front and rear bulkhead after installation
- 17-inch depth for high-density fiber termination and/or splicing
- Enclosure protrudes 4.5 inches from mounting ears to align with the Leviton Versi-Duct® Cable Management System
- Removable, transparent hinged doors and slide-away covers allow easy access during install and visibility of interior after install
- Patch cord bend-radius guides minimize macro bending
- Stackable and adjustable fiber rings simplify cable routing and organization
- Saddles pivot for improved patch cord routing and organization
- Removable rubber grommets protect cable and minimize dust build-up
- Multiple mounting bracket positions for 19-inch or 23-inch rack and cabinet installation (23-inch 1RU mounting bracket sold separately)
- Constructed of durable polycarbonate plastic and 16-gauge steel, powder-coated black
5R1UH-S03 Data Sheet
