Product Description

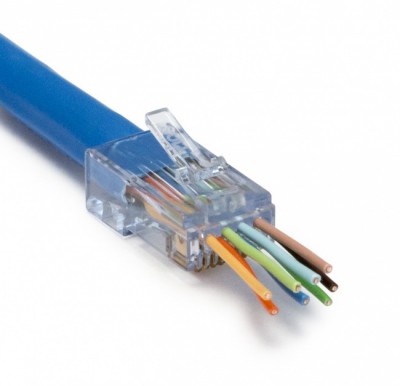

The Platinum Tools ezEX™38 RJ45 Connector is designed for Cat5e and smaller diameter conductors. Features a unique integrated Hi-Lo stagger load bar that allows larger conductors to pass through the front end of the connector. Making it easy to verify the wiring sequence before terminating. The connector is typically used with Cat5e and is terminated with EXO™ Crimp Frame and EXO-EX Die.
- Designed for use with smaller diameter conductors ie Cat5e cable
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece/pass through design, no bars or liners
- 5e/6/6A compliant
- Insulation diameter size range: .033” – .038” (.84 –.97mm)
- Max outer diameter: .290” (7.36mm)
- Solid or Stranded 22-24 AWG
- RoHS 2, UL & FCC compliant
- Made in the USA
Platinum Tools ezEX Connector Installation Video
