Product Description

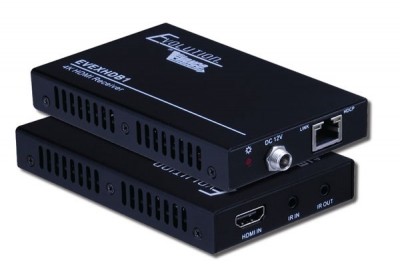

The EVEXHDB1 extender set consists of a transmitter and receiver. HDMI signals are input into the transmitter and HDBaseT technology is used to transmit the audio/video signals to the receiver up to 70m via a single Cat5e/Cat6 cable for 1080p and 40m at 4K 60Hz. The receiver then outputs the HDMI signal to the display. The EVEXHDB1 also allows for bi-directional IR and power across the Cat5e/Cat6 cable. The extender set supports PoC, which can be used to power either end of the extender set off of a single power supply.
- Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 4K@60Hz, 4:2:0 color subsampling up to 131ft (40m)
- HDBaseT Extender transmits uncompressed full HD digital video and audio through a single 230ft/70m Cat5e/Cat6 cable
- Features Power over Cable (PoC) Technology which transmits power over Cat5e/6, allowing for either Transmitter or Receiver to be powered without the use of a power supply. The result is an easy and flexible installation with low maintenance
- Bi-directional IR control
- High Bandwidth: 10.2Gp
- HDCP 2.2 compliant
- CEC Support
- Slim and compact design
- Power Supply: DC 12V
- Dimensions: 2.9” W x .7” H x 4.7” D
Package Contents:
EVEXHDB1 (TX & RX)
(1) IR Blaster (TX)
(1) IR Receiver (RX)
(1) DC 12V in line power supply
Mounting Hardware
