Shop - Leviton Cat6 SlimLine Boot Patch Cords

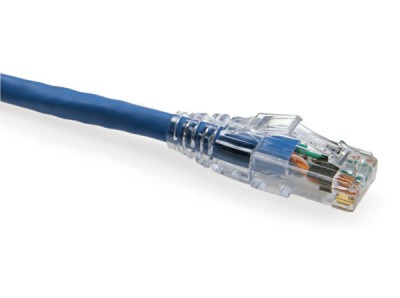

Leviton Cat6 SlimLine Boot Patch Cords


Leviton Cat6 SlimLine Boot Patch Cords

Leviton Cat6 SlimLine Boot Patch Cords feature a narrow profile to support traditional and high-density panels and switches. The snagless plug design makes the patch cords an excellent choice in environments where moves, adds, and changes are frequent.

  • Tested and verified by Intertek (ETL) to meet ANSI/TIA-568-C.2  component standards
  • SlimLine connector improves plug access in tight spaces
  • Snagless plug design with integrated strain-relief boot
  • Stranded conductor for longer flex-life
  • T568B wiring to function in either T568A or T568B applications
  • Channel performance verified by third-party testing in 4-connector, 100-meter channel
  • Outer Diameter (O.D.): 0.225"
  • Materials: 24-gauge, UTP stranded conductor, modular non-keyed, 8-position, 8-conductor plug, 94V-0 rated

Standards Compliance
ANSI/TIA-568-C.2
IEEE 802.3at and IEEE 802.3af requirements
ANSI/TIA-1096-A (formerly FCC Part 68)
cULus Listed
ISO/IEC 11801
RoHS
UL 444 CM Rated

Availability: Usually Ships Same Day

Part NumberLengthColorPrice
6D460-1L1 ftBlueEach: $4.65
6D460-7L7 ftBlueEach: $6.95
6D460-8L8 ftBlueEach: $8.05
