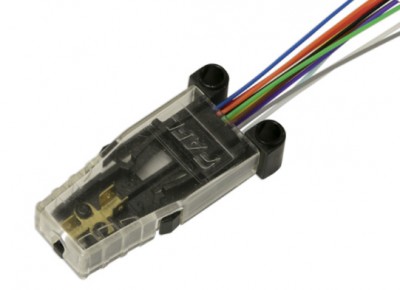

AFL FAN1-9-012-A-01 Fanout Kit 12 Fiber

Product Description

AFL's FAN1-9-012-A-01 12 fiber fanout kit routes 250 μm fibers into 900 μm buffer tubes ready for termination. Easily installed in minutes, the kit requires no special tools, and accommodates input cables from 2.0-3.8 mm in diameter.

Fanout kit features a clear, removable cover which is VFL-compatible and does not require epoxy. Color-coded 900 μm buffer tubes allow for easy identification of individual fiber channels.

  • Fiber Count: 12
  • Protects sensitive 250 μm fibers

  • Accepts 2.0-3.8 mm input cable
  • Epoxy-free installation
  • Clear, removable cover works with Visual Fault Locators (VFL)
  • Compatible with FUSEConnect® and FASTConnect® field-installable connectors
  • Environment: Indoor
  • Operating Temp: 0-70C
  • Length: 1 meter

FAN1-9-012-A-01 Spec Sheet

Availability: Usually Ships Same Day

Part # Price Qty
FAN1-9-012-A-01 each: $21.00
