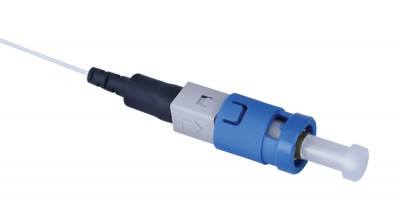

AFL FAST-ST-SM-6 FASTConnect Field-Installable Single-mode ST Fiber Optic Connector

Product Description

AFL's FAST-ST-SM-6 FASTConnect Single-mode compatible ST fiber optic connector is a  factory pre-polished, field-installable fiber connector that completely eliminates the need for hand polishing in the field. Its proven mechanical splice technology ensures precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate, low loss termination to single-mode optical fiber.

Connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination.

Incorporated into this connector is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

  • Single-mode UPC compatible
  • Color: Blue
  • No Epoxy, No Polish
  • Low Insertion Loss
  • Fiber Can Be Reinserted up to Three Times
  • Cable Size: 900 μm
  • Order 2mm or 3mm boots seperately
  • Required cleave length: 10.5mm

6 per pack


FAST-ST-SM Spec Sheet

Availability: Usually Ships Same Day

Part # Description Price Qty
FAST-ST-SM-6 Qty Per Pack 6 each: $81.00
