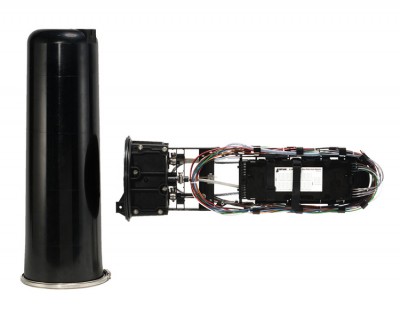

AFL LG-350-U-0 LightGuard 350 Sealed Fiber Optic Splice Closure

Product Description

AFL's LG-350-U-0 LightGuard 350 is a sealed dome closure designed for medium count fiber splicing (up to 480 single or 1152 mass) in a butt configuration. Utilized in aerial or underground environments where a sealed closure is required, the LG-250 is ideal for express or ring applications and requires only a common can wrench for installation.

  • Supports stranded loose tube or ribbon fiber cables in either armored or dielectric configurations
  • Installation and re-entry requires only a common can wrench
  • Fully sealed to protect fiber and splices ensuring longevity
  • Fully kitted with all parts to install five cables
  • Designed and tested to Telcordia® GR-771 requirements
  • Rural Utilities Service (RUS) Listed

Splice Capacity (Max.)—Single, Mass, Mechanical: 480, 1152, 108
Number of Splice Trays (Max.)—Single, Mass, Mechanical: 12, 8 , 8
Cable Entrance Configuration: Butt
Cable Ports: 2 Express ports / 3 Drop ports
Cable Sizes (Min to Max): .4" to 1.00" Express / 0.26" - 0.80"  Drop
Dimensions: 28" L x 10" D

splice trays not included

AFL LG-350-U-0 LightGuard 350 Spec Sheet

Availability: Backorder

Part # Description Price Qty
LG-350-U-0 AFL Model FC000009-PS each: $263.00
FC000337 Dual Express Grommet each: $30.30
