Product Description

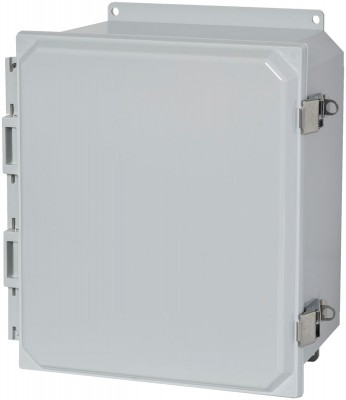

The Hammond Manufacturing PCJ14126LF is designed to insulate and protect components in both indoor and outdoor conditions.

• Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled.
• Polycarbonate material has a light gray finish
• Enhanced UV inhibitors protect against outdoor weathering
• Threaded brass inserts are provided for optional inner panel or terminal kit mounting, mounting hardware is included
• Stainless steel 316 screw  fasteners
• Door fasteners include a provision for padlocking snap latches
• Molded hinge
• Captive oil resistant gasket provides a positive seal
• Polycarbonate flange for mounting
• Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
• Impact index of  16 J (12 ft/lb)
• UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13
• cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94
• Complies with
  • NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13
  • IEC 60529, IP66
  • Flammability V-O per UL 94
  • UV rating (f1) per UL746C - UV stabilized for outdoor use

Availability: Usually Ships Same Day
