Product Description

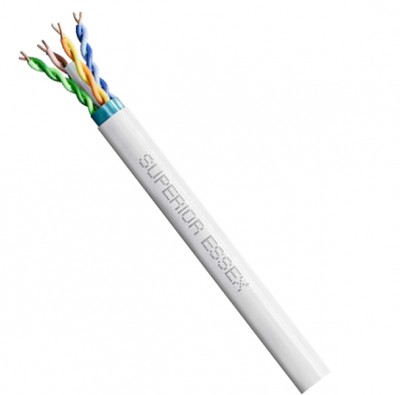

Superior Essex 10 Gain XP+ CAT 6A plenum rated cable meets or exceeds all industry requirements including ANSI/TIA-568.2-D. This cable utilizes a proprietary core wrap which assures excellent alien crosstalk performance. This cable fully complies with UL 444 requirements for an unshielded twisted pair product. 10Gain XP+ CMP (plenum) has a nominal 0.250” diameter that allows for higher cable density than other CAT 6A cable products. 10Gain XP is ideal for PoE applications requiring higher levels of current and simultaneously up to 10 Gigabit Ethernet.

• 23AWG conductors, solid annealed copper, FEP insulation
• Jacket  - Flame retardant (FR) Low Smoke PVC
• Nominal OD - .250"
• UL Verified CAT 6A
• UL, c(UL) Listed CMP
• UL Listed CMP-LP (0.5)
• Guaranteed 15 dB AXT margin
• Tested to 650 MHz
• 10BASE-T through 10GBASE-T Ethernet
• Power over Ethernet (PoE) – IEEE 802.3bt Type 1 to 4
• HDBaseT Class A and B
• ATM and token ring
• Non-conductive core wrap provides substantially more AXT protection without grounding or bonding
• CableID® alpha numeric code printed every 2 feet alows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
• QuickCount® marking system in feet and meters provides remaining length of cable on reel

Made in the USA

10Gain XP+ Cat6A Spec Sheet

Availability: Usually Ships Same Day
